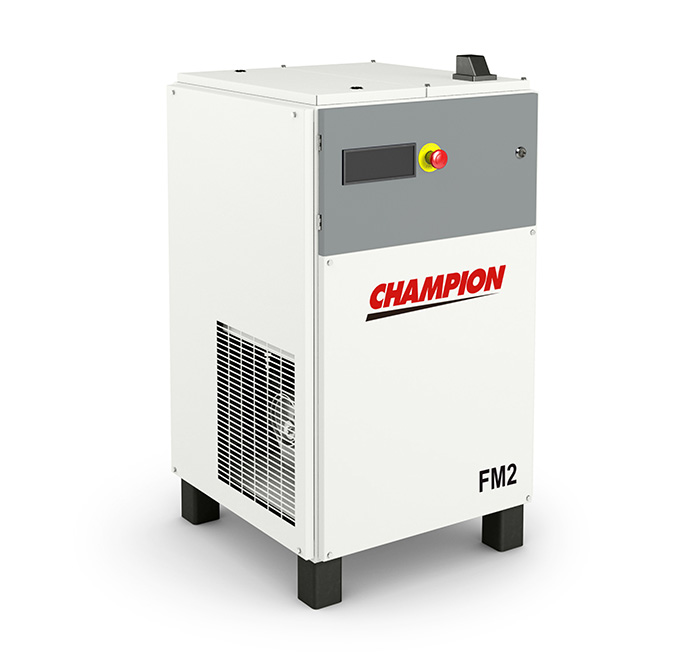

Screw compressor Champion FM02 (8 bar)

Model characteristics FM02

FM02 (RSCCP020602) is a Champion screw compressor with a capacity of 12.6 m³/h (0.21 m³/min) at a maximum working pressure of 8 bar. The unit measures 622 x 599 x 1106 mm and weighs 151 kg. The same model is also available as: 10 bar (10.8 m³/h). We select, supply and service compressors across Poland — including as a compressed air source for medical gas pipeline systems.

About the series

Screw compressors Champion FM series (Smart Compressor Design) are known for their quality and reliability and are continuously developed for the highest performance and efficiency. A wide range of models and versions ensures maximum selection flexibility. Plug-and-play design: easy installation, simple operation and quick servicing thanks to a well-thought-out enclosure. A minimal number of moving parts translates into exceptional reliability and continuous operation. The screw element designed and manufactured by the producer (CNC machining, laser technology) ensures low operating costs throughout the entire service life.

Technical parameters
