Screw compressor Champion FM45 (8 bar)

Model characteristics FM45

FM45 (CC1195736) (8) is a Champion screw compressor with a capacity of 451.2 m³/h (7.52 m³/min) at a maximum working pressure of 8 bar. The unit measures 1554 x 894 x 1405 mm and weighs 850 kg. The same model is also available as: 10 bar (405 m³/h), 13 bar (324 m³/h). We select, supply and service compressors across Poland — including as a compressed air source for medical gas pipeline systems.

About the series

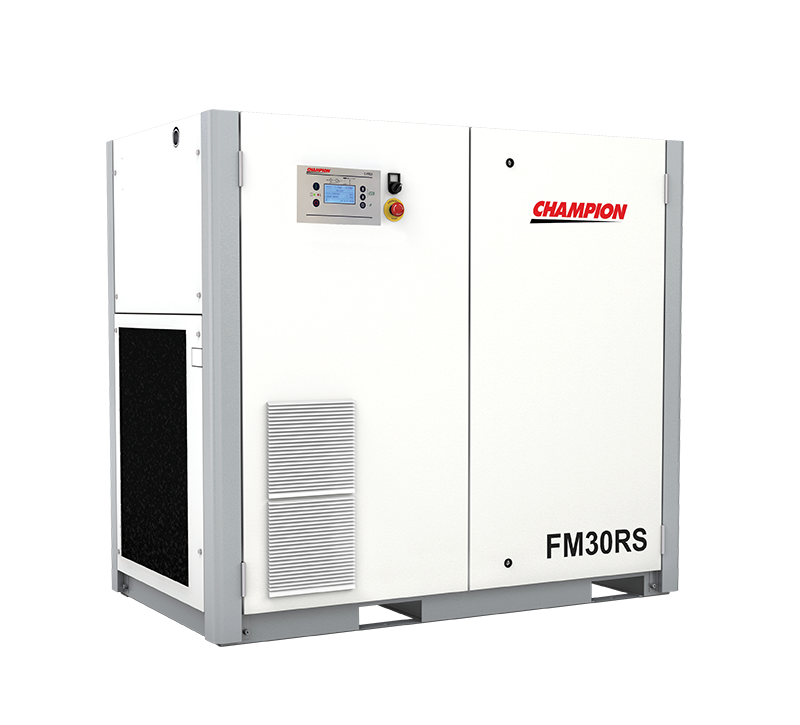

Screw compressors Champion FM series (Smart Compressor Design) are known for their quality and reliability and are continuously developed for the highest performance and efficiency. A wide range of models and versions ensures maximum selection flexibility. Plug-and-play design: easy installation, simple operation and quick servicing thanks to a well-thought-out enclosure. A minimal number of moving parts translates into exceptional reliability and continuous operation. The screw element designed and manufactured by the producer (CNC machining, laser technology) ensures low operating costs throughout the entire service life.

Technical parameters
